Pressurized Media Filter Skid

Filter Tanks are generally filled in with Glass Filter Media instead of silica sand, for multiple advantages and advanced performance.

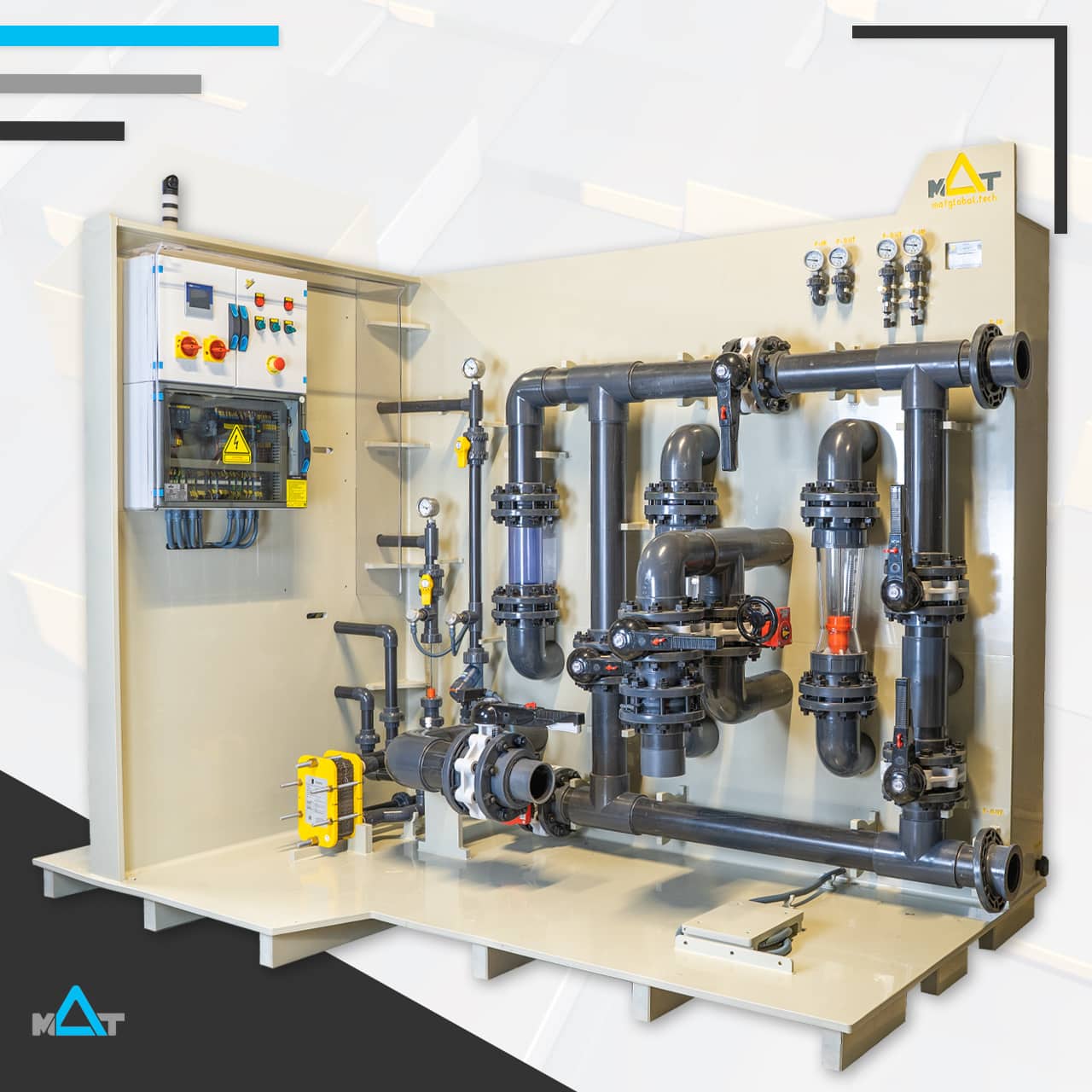

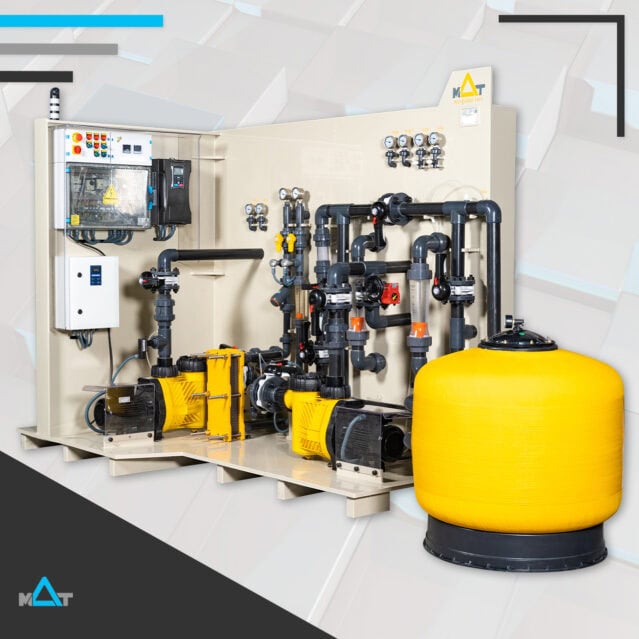

The Pressurized Media Filter (PMF) Skid System is a complete plug and play water treatment solution. PMF Skid Systems are sold hydrotested and fully assembled. Complete ease of operation and low energy consumption. The unit includes top notch mechanical filtration with powerful disinfection.

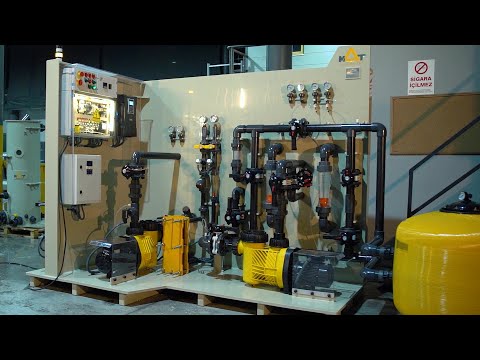

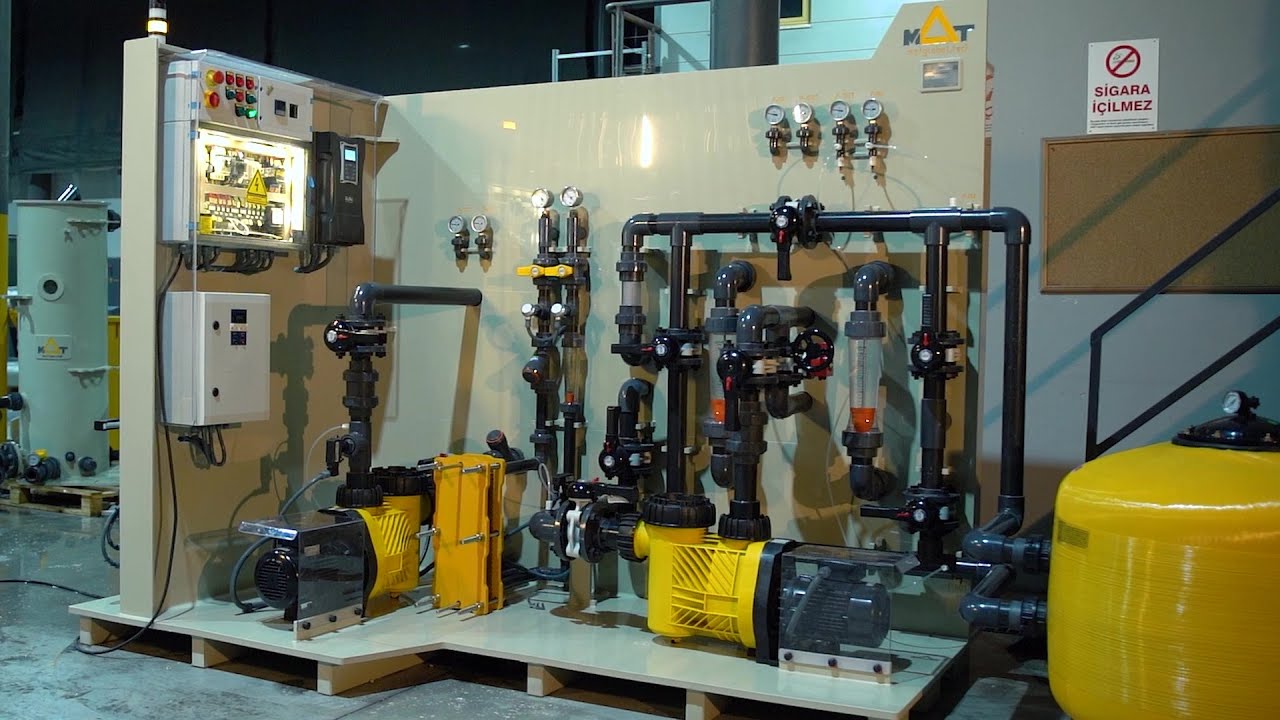

Pressurized Media Filtration Skid System

Watch this video on YouTube

Pressurized Mechanical Filter Tank
Circulation Pump
UV-C Sterilizer
Piping & Valves
Flow Meters
Plate Heat Exchanger
Chemical Dosage & Controller
Variable Pump motor drivers
Pressure sensors
Temperature Monitoring

ALL EQUIPMENT CATALOG

PMF Skid Systems

PMF SKID	PMF-4	PMF-12	PMF-22	PMF-38	PMF-50	PMF-64	PMF-80
Footprint Width [mm]	2200	3100	3500	4300	4830	5000	5300
Footprint Length [mm]	830	1400	1400	1620	1850	2100	2600
Unit Height [mm]	2060	2250	2200	2300	2400	2600	2700
Recommended Room Height [mm]	3000	3000	3000	4500	4500	5000	5000
PMF Tank Diameter & Area [mm]	500	830	1000	1400	1600	1800	2000
PMF Tank Diameter & Area [m²]	0,19	0,5	0,79	1,54	2,01	2,54	3,14
Installed Power [kW]	0,75	1,77	2,55	3,8	4,8	6,4	6,4
Basic Unit Total Electric Consumption [kWh]	0,65	1,5	2,2	3,25	4	5,5	5,5
Supply Voltage (50Hz) [V]	3~400/230	3~400/230	3~400/230	3~400/230	3~400	3~400	3~400
Skid Inlet [mm]	50	75	90	140	160	160	200
Skid Outlet [mm]	50	63	75	110	140	140	160
Backwash Inlet Size [mm]	40	63	75	110	110	125	140
Nominal Flowrate [m³/h]	5	11	21	38	50	63	78
Dry Weight [kg]	450	765	950	1250	1550	1850	2100
System Pump Model	Speck Prime 13 AK	Speck Prime 30 AK	Speck Prime 40 AK	Speck Resort 50 AK	Speck Resort 80 AK	Speck Resort 110 AK	Speck Resort 110 AK
System Pump Driver Model	EP66-0022 T3	EP66-0022 T3	EP66-0022 T3	EP66-0040 T3	EP66-0040 T3	EP66-0055 T3	EP66-0055 T3

Filter Tanks

Tank Model Number	FT-500	FT-830	FT-900	FT-1000	FT-1200	FT-1400	FT-1600	FT-1800	FT-2000	FT-2200	FT-2400	FT-2X2.5	FT-2X3	FT-2X4	FT-2X5
Material	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP	GRP
Type	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Horizontal	Horizontal	Horizontal	Horizontal
Diameter/ Footprint Size mm	500	830	900	1000	1200	1400	1600	1800	2000	2200	2400	2000x2500(L)	2000x3000(L)	2000x4000(L)	2000x5000(L)
Height mm	1605	1770	1730	1310	1410	1560	1860	2050	2160	2360	2660	2300	2300	2300	2300
Tank Volume m3	0.4	1.23	1.42	1.37	1.05	1.6	2.5	3.6	4.8	6.7	8.8	6.9	8.5	11.3	14
FLOWRATE m3/h	4.75	13.5	16	19.8	28.3	38.5	50.3	63.5	78.5	95	108	102	125	170	221
FILTRATION SPEED m3/h/m2	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25
FILTRATION AREA m2	0.2	0.5	0.64	0.79	1.13	1.54	2.01	2.54	3.14	3.8	4.34	4.1	5	7	8.8
CONNENCTION FLNGED/UNION	UNION	UNION	UNION	UNION	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED	FLANGED
CONNENCTION SIZE mm	50	63	63	75	90	110	125	140	160	160	160	160	160	225	225
SAND MEDIA DEPTH mm	1000	1000	1000	1000	870	1000	1200	1280	1380	1380	1380	1000	1000	1000	1000
TOTAL SAND MEDIA CAPACITY Kg	276	743	885	1075	1316	2085	3245	4308	5844	5700	6510	7380	9000	12600	15840
Nominal Operational Pressure bar	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Design Pressure	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5

PMF Skid Optional Components

PMF SKID OPTIONAL FEATURES	PMF-4	PMF-12	PMF-22	PMF-38	PMF-50	PMF-64	PMF-80
AUTOMATIC BACKWASH	PNEUMATIC/MOTORISED	PNEUMATIC/MOTORISED	PNEUMATIC/MOTORISED	PNEUMATIC/MOTORISED	PNEUMATIC/MOTORISED	PNEUMATIC/MOTORISED	PNEUMATIC/MOTORISED
Temperature Sensor	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
TITANIUM HEAT EXCHANGER	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
Titanium Heat Exchanger Capacity [kWh]	3/5	5/10	15/20	20/40	25/50	30/75	50/100
ELECTRICAL TITANIUM HEATER	OCDV6	OCDV9	OCDV15	OCDV24	OCDV24	2 x OCDV24	2 x OCDV24
Electrical Heater Capacity [kWh]	6	9	15	24	24	48	48
PLC CONTROL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
UV DISINFECTION	UV 5	UV 10	UV 20	UV 50	UV 50	UV 100	UV 100
AUTOMATIC CHEMICAL CONTROL & DOSING SYSTEM	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes	POOL GUARD Include Chemical Regulator Pumps & PH/ORP Propes
Disinfection System Footprint Width [mm]	950	950	1100	1200	1200	1200	1200
Disinfection System Footprint Depth [mm]	500	500	500	600	600	600	600

*MAT KULING™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
