Ozone Generators

Ozone Generators

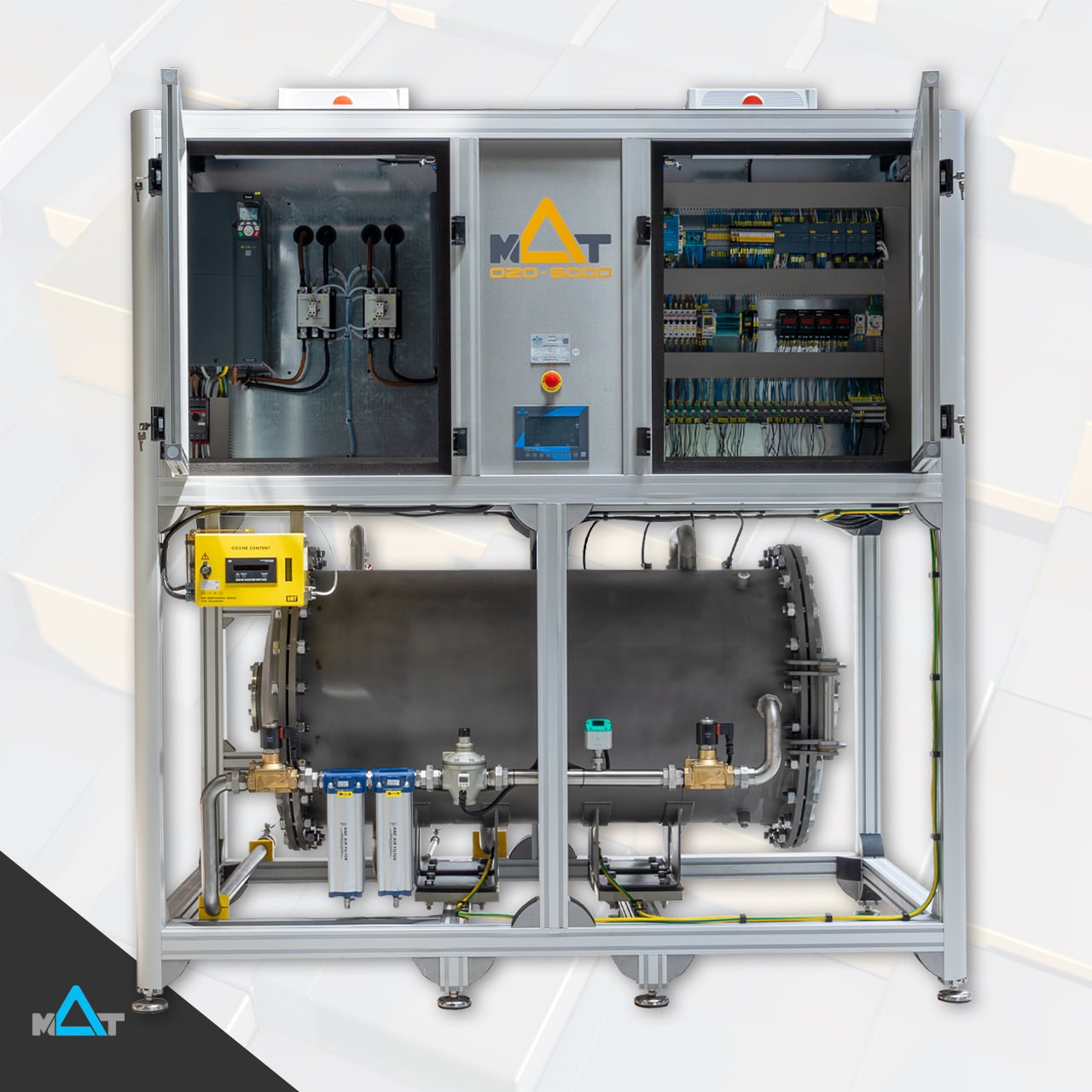

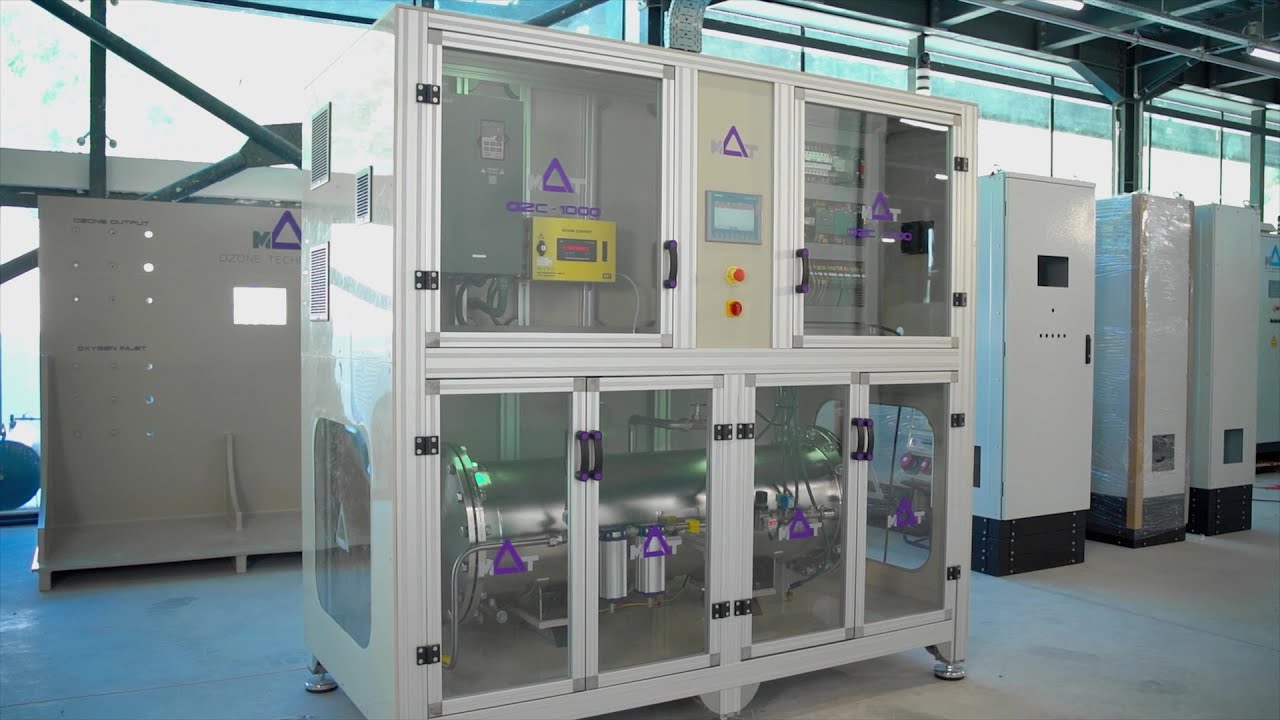

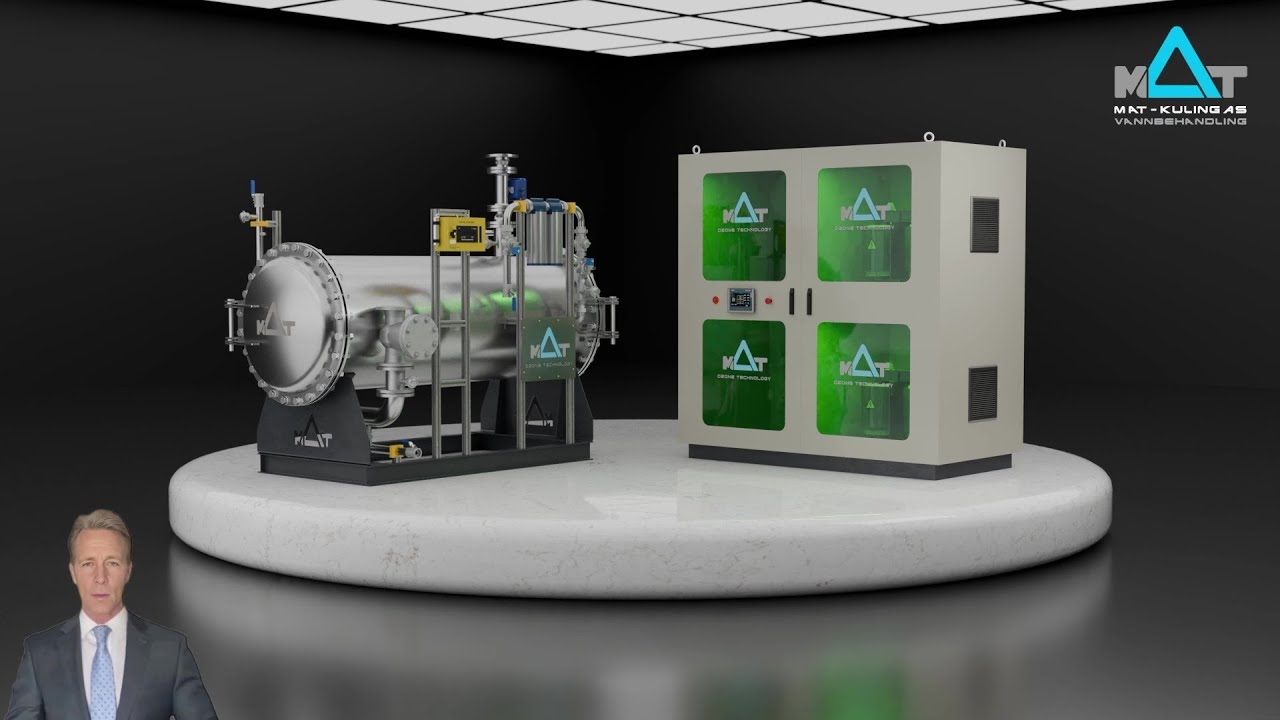

Ozone Generators designed and tested for RAS applications. Fabricated in respect with EU & US HSE guidelines in our factory with quality components easy to repair or replace. Equipped with control panel and optionally with oxygen concentrators, air chillers and air dryers.


MAT-KULING designs and manufactures the Ozone Generators to provide stable ozone infusion in high humidity environments. Our ozone generators are sensitive electrical equipment fabricated specifically for aquaculture facilities.

The models start from 5 g/h up to 100 g/h and for larger applications multiple 100gr units can be assembled. Our ozone generators are designed and fabricated to provide stable ozone output. Furthermore they are fitted with regenerative air dryers, cooling reactors and ORP – Redox monitoring probes.

MAT-KULING has the technology and expertise to fabricate safe ozone generators that deliver the actual ozone specified output. OZ are fabricated for ozone infusion into the water. A solution for an effective, safe and natural disinfection process. Ozone gas is oxidant and dangerous and should be produced and handled under strict monitored operation practices.

Our devices are applicable to Recirculated Aquaculture Systems and other water treatment facilities.


OZ systems come with the following supportive equipment:

  • Air Dryer
  • Oil Free Compressor
  • Oxygen Concentrator
  • Ceramic Corona Cell Ozone Generator
  • Monitoring System
  • Control Panel
  • Safety Alarm
  • Ozone Concentration in Air Probes
  • Ozone Concentration in Water Probes, ORP – Redox

All the supported components of the MAT-KULING Ozone Generators are repairable and replaceable.

Advantages of Ozone Generators

  • Plug and play application.
  • Complete solution with all needed supportive components readily installed.
  • Low pressure drop.
  • +3 °C pressure dew-point.
  • Suitable for tropical and high humidity conditions operation.
  • R-134a gas.
  • Small footprint.
  • Durable robust design excellent resistance to harsh environment.
  • Effective operation in humid environments.
Controls: Emergency Stop, Product Ozone Potentiometer, Oxygen Flowmeter: Regulation of Oxygen, Power On System/Ozone Generation/Fault Indicators

Ozone Generators - SPECIFICATIONS

Ozone GeneratorFootprint
[mm] Width
[mm] Depth
Max Height [mm]Ozone
Output [g/h]
Ozone Concentration [g/m³]Nominal
Energy Consumption [W]
Max Energy Consumption [W]Nominal Energy Consumption [A]Max Energy Consumption [A]Supply Voltage 50/60 Hz [V]Ozone Outlet
SS 316 [mm]
Ozone Flow
Rate [L/min]
Total Heat Load [W]Air Conditioner Filter+DryerDevice
Weight [kg]
Ozone Production Method
OZ-590060512505176569003.9351~22085187.81100Corona Discharge
OZ-109006051250103478310004.2851~22085205.41112Corona Discharge
OZ-2010506801250203487314504.716.51~220810278.61153Corona Discharge
OZ-3010506801250305093215505.4891~220810364.21175Corona Discharge
OZ-501050680125050412042269010.51131~220810597.21186.8Corona Discharge
OZ-751250750161575413674490016.64143~400815995.61190Corona Discharge
OZ-10012507501615100384472700023.15143~4008401438.41326Corona Discharge
* MAT FILTRATION TECHNOLOGIES™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
