Ozone Destruct Units

Ozone Destruct Units

Ambient air excess ozone destruct devices. They comply with EU and US HSE guidelines for safe operation of ozone devices. They body is made of PVC & PP plastic, designed for fast replacement of the ozone absorbing media. Comes installed and air pressure tested for fast and hassle free installation.

The Ozone Destruct unit (OD) is an apparatus containing either activated carbon media or flame chamber, used to absorb excess ozone from the ambient air. It is an essential safety measure against residual ozone concentration after water treatment process. OD will safely and rapidly destroy any exceeded ozone gas quantity.

Our OD Units offer the solution for the safe and rapid destruction of ozone and should be a core element of a proper ozone generator installation in confined mechanical room. OD units are applicable to any ozone infused biologically charged water volume and it is commonly used to fresh and marine RAS farms and hatcheries.

Ozone, as an unstable gas, requires a retention and infusion pressurized chamber where the disinfection process takes places. Taking into consideration that it is a corrosive gas, harmful and toxic to any living organism, excess ozone should be destructed. Excess ozone is flowing from the disinfection point to the OD Unit inlet.

Essential Safety Measure against Residual Excess Ozone
Safe & Rapid Ozone destruction
Small Footprint
Easy Maintenance & Operation
Low to No Power Consumption
Resistive to Ozone

Specifications

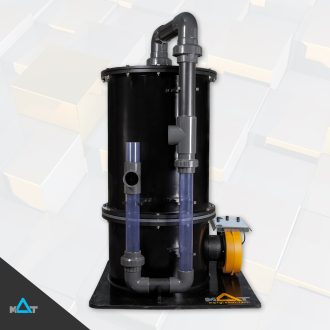

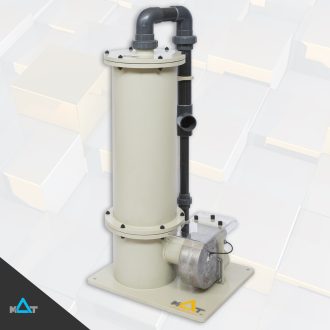

Ozone Destruct	ODC-6	ODC-25	ODC-50	ODC-100	ODC-200
Footprint Width [mm]	510	655	750	825	955
Footprint Depth [mm]	460	550	680	760	890
Max Height [mm]	1110	1390	1430	1490	1490
Body Diameter [mm]	250	315	400	500	630
Body Material	PP	PP	PP	PP	PP
Installed Power [W]	80	105	240	400	400
Supply Voltage 50 Hz [V]	1~230	1~230	1~230	1~230	1~230
Residual Ozone Line Connection [mm]	50	75	90	90	90
Off-Gass Outlet Connection [mm]	75	110	110	125	140
Water Drain Connection [mm]	40	50	63	75	75

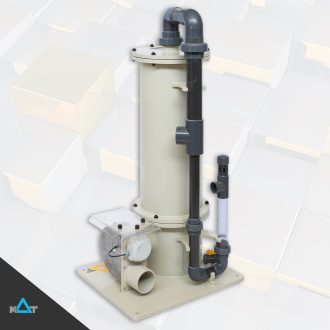

Activated Carbon Media Quantity [L]	20	40	60	110	200
Max Gas Inlet Ozone concentration %wt	1	1	1	1	1
Max Gas Outlet Ozone Concentration ppm	0,1	0,1	0,1	0,1	0,1
Water Trap/Drain Column	standart	standart	standart	standart	standart
Blower [model]	G2E120-AR77-01	G2E140-AE77-01	G2E160-AY47-01	G2E180-EH03-01	G2E180-EH03-01

Catalysis Specifications

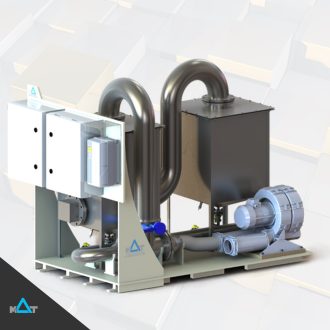

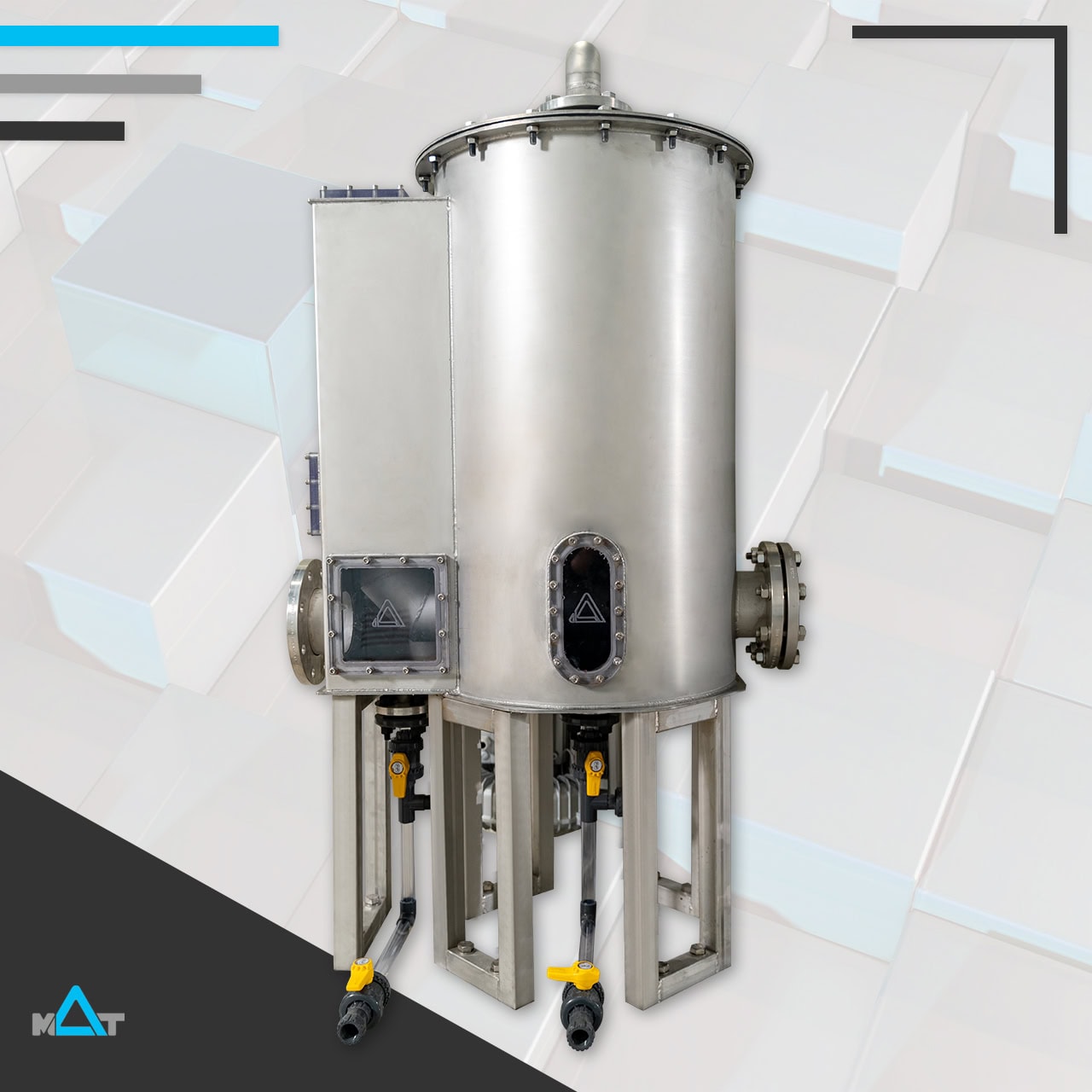

Ozone Destruct Catalysis	ODT-1	ODT-5	ODT-10	ODT-25	ODT-50	ODT-100	ODT-200	ODT-400	ODT-800	ODT-1200	ODT-2000
Flow rate Nm³/h	1	5	10	25	50	100	200	400	800	1200	2000
Footprint Width [mm]	450	560	600	1200	1300	1300	1400	1600	1900	2000	2400
Footprint Depth [mm]	180	220	500	400	500	600	800	1000	1200	1500	1800
Max Height [mm]	1200	1460	1000	1600	1600	1600	1750	1750	2000	2000	2400
Dry Weight kg	11	22	35	79	95	150	205	290	420	670	800
Demister/Destructor Material	316 SS	316 SS	316 SS	316 SS	316 SS	316 SS	316 SS	316 SS	316 SS	316 SS	316 SS
Chasis Material	N/A	N/A	PP or GRP	PP or GRP	PP or GRP	PP or GRP	PP or GRP	PP or GRP	PP or GRP	PP or GRP	PP or GRP
Pipeline Material	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS	U-PVC and 316 SS
Installed Power [kW]	0,1	0,15	0,8	1,15	2	3,5	5,5	10	21,5	26,5	45
Supply Voltage 50/60 Hz [V]	1~230	1~230	3~400	3~400	3~400	3~400	3~400	3~400	3~400	3~400	3~400
Heater Power kW	0,1	0,15	0,4	0,75	1,25	2	3	5,5	10	15	22
Residual Ozone Line Connection [mm]	DN15	DN25	DN25	DN32	DN40	DN40	DN50	DN80	DN110	DN150	DN200
Off-Gass Outlet Connection [mm]	DN15	DN25	DN25	DN32	DN40	DN40	DN50	DN80	DN110	DN150	DN200
Destructor Inlet Max Ozone Concentration %wt	3	3	3	3	3	3	3	3	3	3	3
Destructor Outlet Max Ozone Concentration ppm	<0,1	<0,1	<0,1	<0,1	<0,1	<0,1	<0,1	<0,1	<0,1	<0,1	<0,1
Demister Drain Connection [mm]	DN15	DN15	DN20	DN20	DN25	DN25	DN32	DN32	DN32	DN32	DN32
Carulite Media Quantity [kg]	1	2	3	6	10	20	40	75	155	225	375
Blower Model (Recommended)	N/A	N/A	10 DL MD	K03 MS	K04 MS	K05 MS	K06 MS	K08 MS	K12 MS	K10 TS	K09 TS
Blower Power @-50mbar, 50/60Hz. kW	N/A	N/A	0,37	0,37	0,75	1,50	2,2	4	9,2	11	11x2
Blower Quantity pcs.	N/A	N/A	1	1	1	1	1	1	1	1	2
Max Suction Pressure @ Duty Point mBAR	N/A	N/A	-140	-140	-140	-140	-140	-140	-150	-140	-150
Variable Frequancy Driver Model vfd	N/A	N/A	EP66-0007 T3	EP66-0007 T3	EP66-0007 T3	EP66-0015 T3	EP66-0022 T3	EP66-0040 T3	EP66-0110 T3	EP66-0110 T3	EP66-0110 T3
Permissible ambient and fluid temperatures allowed °C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C	+15°C to +40°C

* MAT-KULING AS™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
