Protein Skimmers for Salmon Hatcheries

Freshwater fish farmers, especially salmon farmers, requested MAT-KULING to develop a Freshwater Protein Skimmer able to perform in fresh and brackish water conditions and installed in salmon pre-smolt stages tanks.

The protein skimmer is an add-on to the existing filtration setup. By adding a protein skimmer to the hatchery filtration RAS, the farm aims for 20% or more enhancement of water quality and significant improvement in biomass capacity per tank.

Engineering & Operation

The protein skimmer / foam fractionator produces fine and thick constant air bubbles in order to generate sufficient skimming. The skimmer is installed in pre-smolt stage freshwater tanks. This is the stage that farms need better water parameters to achieve optimal salmon growth. The concern is that these pre-smolt tanks run on fresh water and traditional protein skimmers could not achieve significant foam fractionation.

Our design and engineering department spent over 12 months testing different venturi injectors on skimmer bodies while feeding tank water with special venturi pumps to obtain the needed pressure and achieve high levels of air infusion into the water cyclone within the skimmer body. After many trials and FEA studies, our fresh water protein skimming is now achieving equal if not better to salt water viscous results.

NIVA Results Up to 70% Particles Removal in MAT-KULING Freshwater Protein Skimmers

In 2020 the Norwegian Institute for Water Research (NIVA), Norway’s leading Non For Profit Institute for fundamental and applied research on marine and freshwater performed an independent, nonpaid field trial on MAT-KULING Freshwater Protein Skimmers. View below the research results.

Percentage of Particles Removal Diagram in MAT-KULING Freshwater Protein Skimmers Tested by NIVA
Percentage of Particles Removal in MAT-KULING Freshwater Protein Skimmers Tested by NIVA

Advanced Presmolt Salmon Filtration Equipment

It is very important that our fresh water protein skimmers contribute significantly to farms biosecurity by obtaining far better water parameters to existing tanks. Our equipment is designed from scratch and delivers the best quality of protein removal from any other equivalent foam fractionator in the market. Better water quality results to more fish and feed in the same tank.

Largest Protein Skimmers for Aquariums & Aquaculture in the Market ( Freshwater / Seawater )

Automatic Foam Level Controller for Protein Skimmers

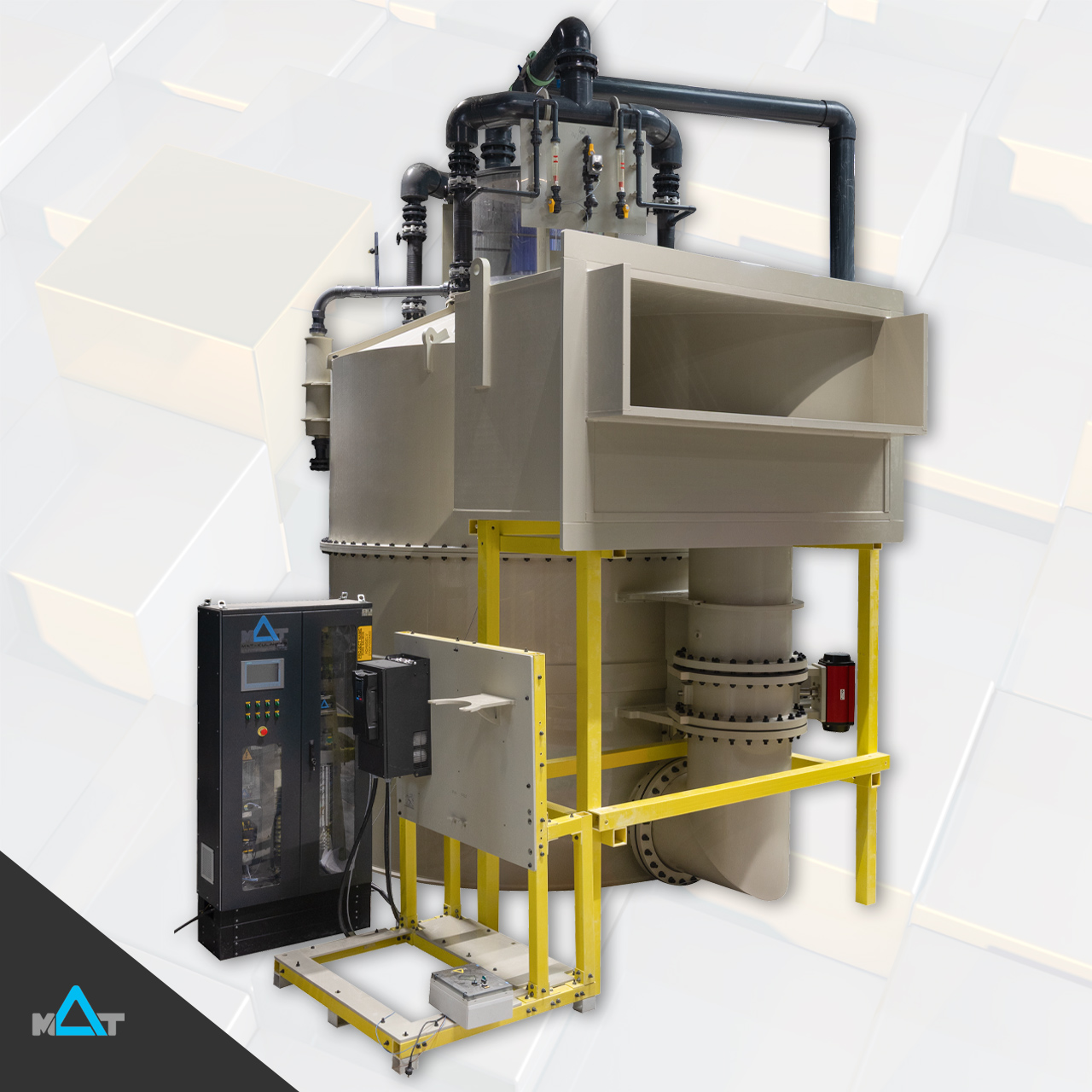

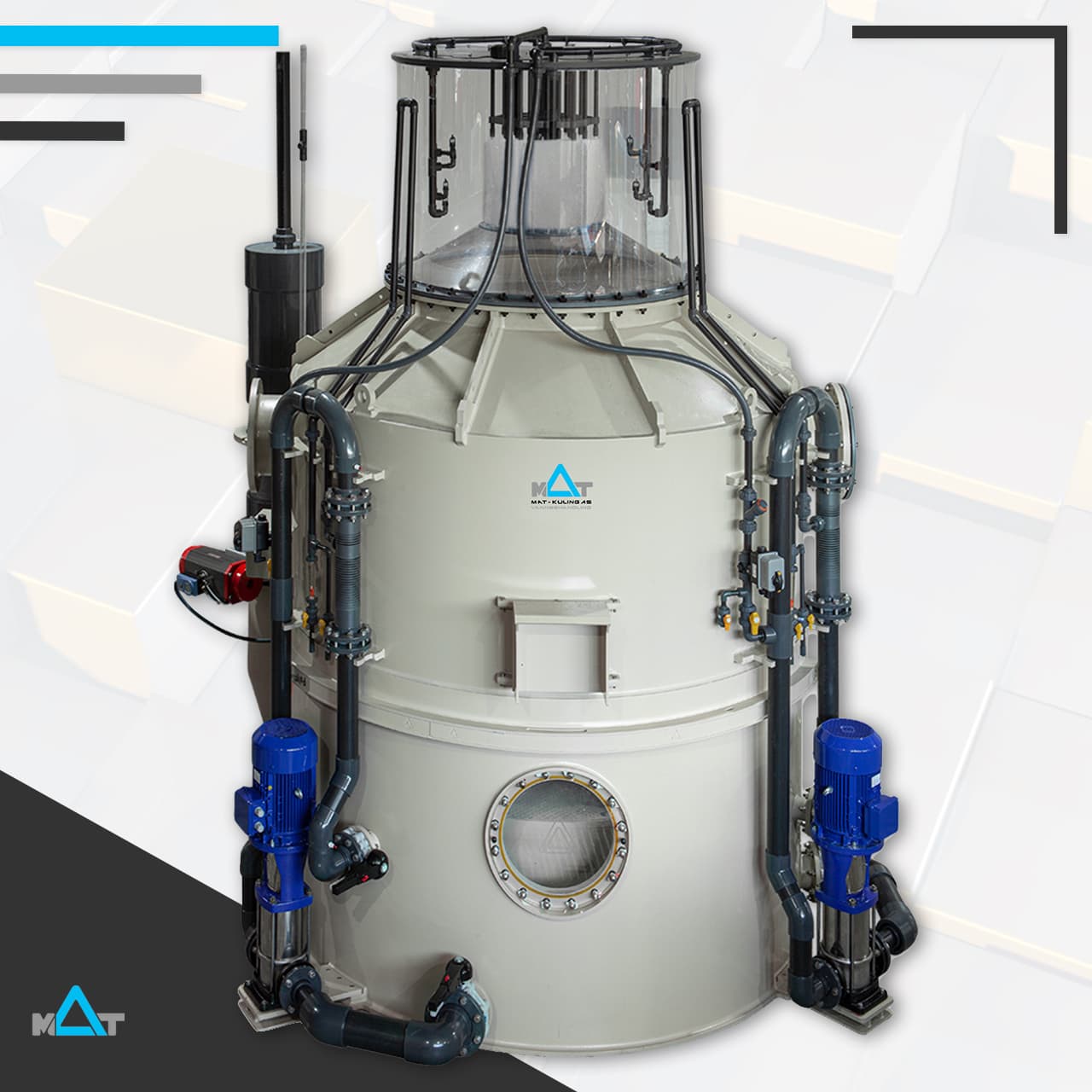

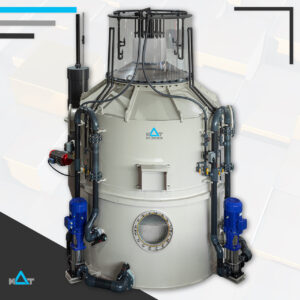

The new freshwater protein skimmer has an upgraded body, high efficiency protein cap collector, higher head pump, new specially designed Venturi and optionally, we offer foam level automated controllers. The new automation is a must-have addition for those farms that seek to operate under controlled fresh water conditions.

Automatic foam level controller for Protein Skimmer
Automatic foam level controller for Protein Skimmer

View below technical data, specifications and competitive pricing for your salmonid hatchery or any other demanding fresh water aquaculture application.

Freshwater Protein Skimmers - SPECIFICATIONS

PROTEIN SKIMMER-FPSF-22PSF-62PSF-220PSF-360PSF-600PSF-800PSF-1300
Footprint
Depth [mm]
1060125019002000235029003500
Footprint
Width [mm]
1160150013702800335040004770
Diameter
[mm]
5007509551500200023002885
Height
[mm]
1950241226503654398739404670
Installed Power
[kW]
2,502,504,508,0011,0011,0022,00
Basic Unit Total Electric Consumption
[kWh]
1,401,604,506,009,009,0018,00
Supply Voltage (50Hz)
[V]
3~400/2303~400/2303~400/2303~400/2303~400/2303~400/2303~400/230
Inlet Size
[mm]
75110160225315355400
Inlet Qty
[pcs]
1111111
Inlet Level
[mm]
1165150015902300218521102723
Outlet Size
[mm]
90140225280315400400
Outlet Qty
[pcs]
1111111
Outlet Level
[mm]
1252151815852259217923402560
Body Volume
[m³]
0,240,711,294,508,0911,0020,5
Minimum-Maximum operation water level
[mm]
1353-16311705-20101949-22542806-31562922-33722095-33053665-4065
Foam Collector effluent connection size
[mm]
50506363909090
Max Flow Rate
[m³/hr]
22622203606008191300
Max Flow Dwell Time
[second]
38412145494835
@1min Dwell Time Flow Rate
[m³]
1443772704856601229
@1.5 min Dwell Time Flow Rate
[m³/hr]
9,628,451,6180,0323,6440,0819,6
@2 min Dwell Time Flow Rate
[m³/hr]
72139135243330615
Dry Weight
[kg]
13721033073097511852150
Operational Weight
[kgs]
4359701730536598001358525000
Body MaterialPPPPPPPPPPPPPP
Venturi Pump Qty
[pcs]
1111112
Venturi Pump ModelIN-VB 10-50IN-VB 10-50IN-VB 25-20 FIN-VB 25-40 FIN-VB 60-20 FIN-VB 60-20 FIN-VB 60-20 F
Nominal Air Suction
[Nm³/hr]
6,59,515307070140
PROTEIN SKIMMER-F
OPTIONAL FEATURES
PSF-22PSF-62PSF-220PSF-360PSF-600PSF-800PSF-1300
Electrical Control Paneloptionaloptionaloptionaloptionaloptionaloptionaloptional
Fom Collector Autowash
Valve Type
MotorizedMotorizedMotorizedMotorizedMotorizedMotorizedMotorized
Overflow Switchoptionaloptionaloptionaloptionaloptionaloptionaloptional
ORP Controloptionaloptionaloptionaloptionaloptionaloptionaloptional
Foam Level AutomationN/AN/Aoptionaloptionaloptionaloptionaloptional
Operational PlatformN/AN/AN/Aoptionaloptionaloptionaloptional
Passive Ozone Destructoptionaloptionaloptionaloptionaloptionaloptionaloptional
ORP Probe Wet-Tapoptionaloptionaloptionaloptionaloptionaloptionaloptional
* MAT-KULING AS™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
