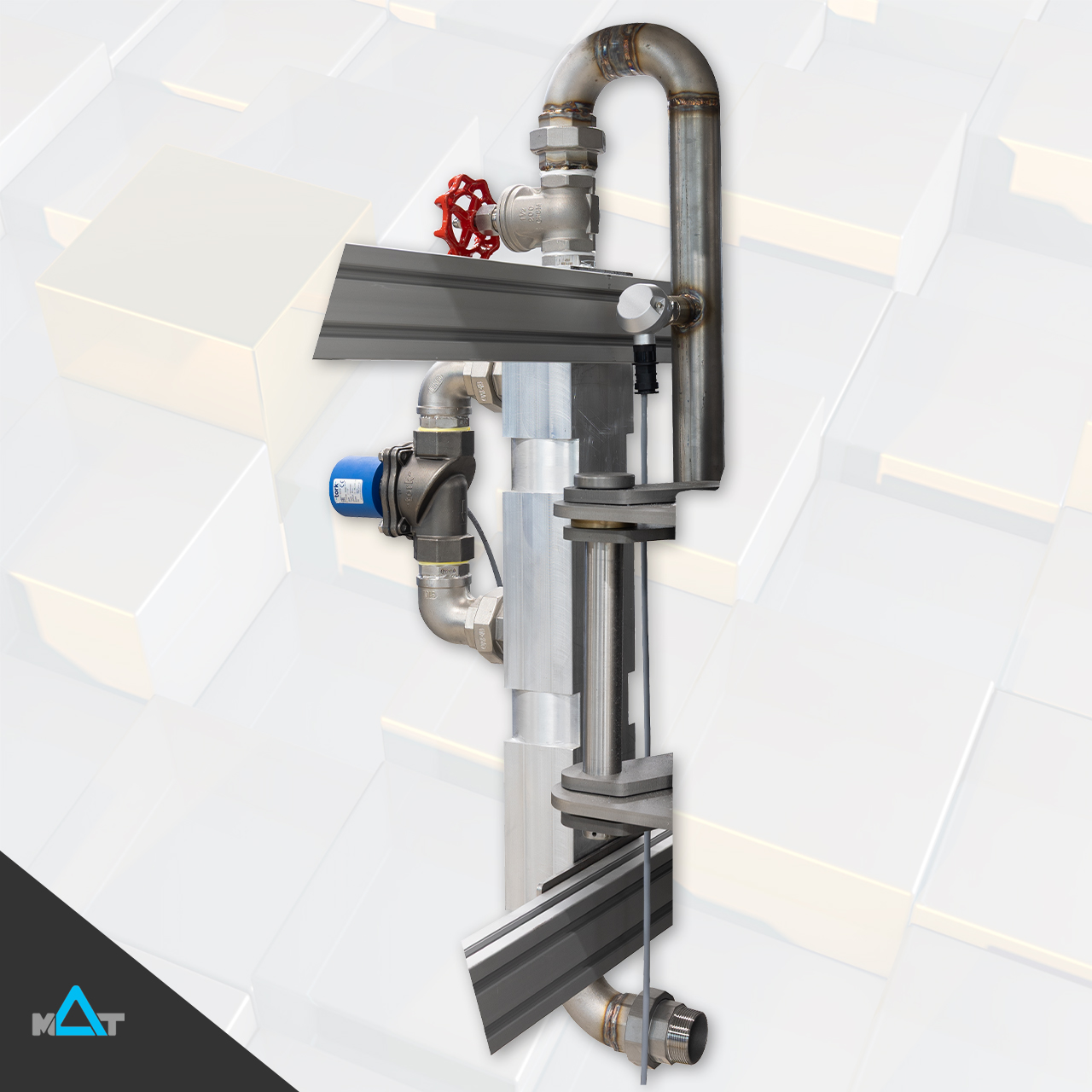

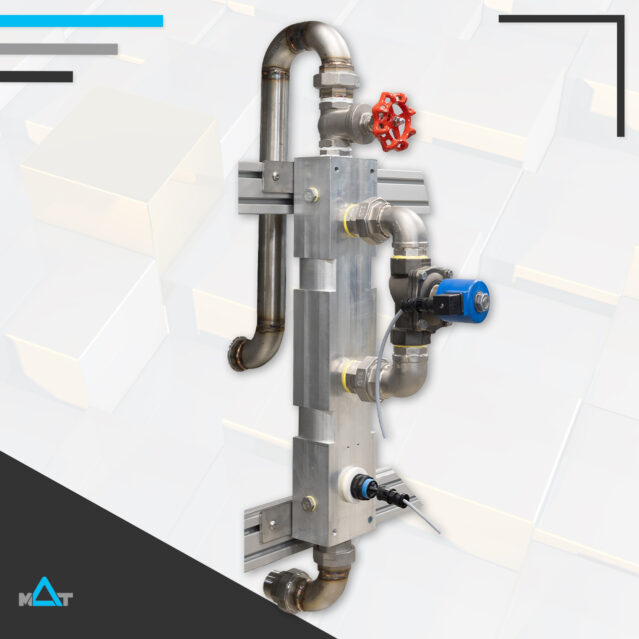

Backflow Prevention Mechanism

Structure of a backflow prevention device — Structure of a Backflow Prevention Device

ALL EQUIPMENT CATALOG

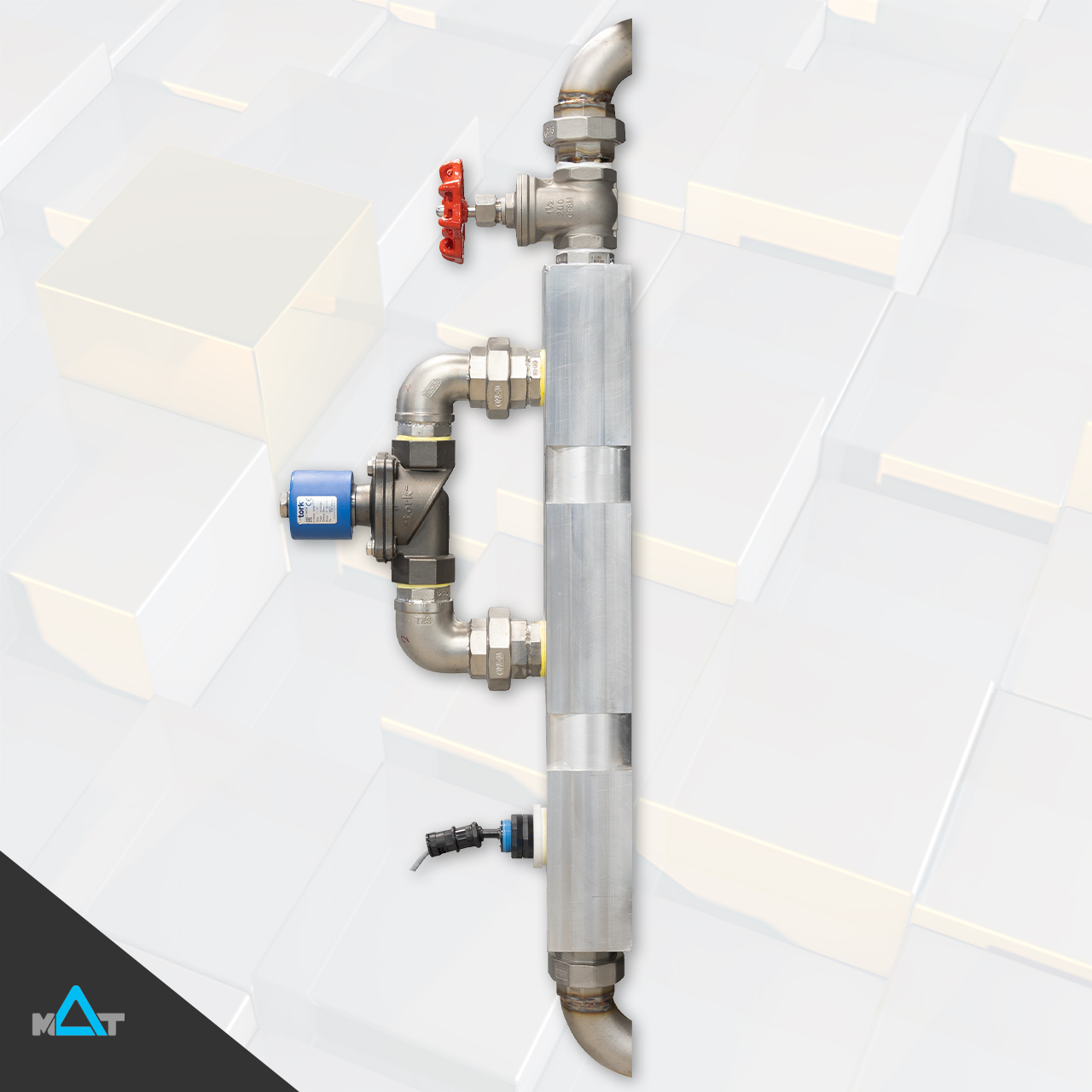

Backflow prevention device — Backflow Prevention Device

Specifications

Backfllow Prevention Device	BFP-8	BFP-15	BFP-22	BFP-35	BFP-42	BFP-50
Footprint Width [mm]	150	180	200	200	250	250
Footprint Depth [mm]	165	275	326	326	376	446
Max. Height [mm]	300	400	500	500	600	800
Total Electric Power [W]	25	20	20	25	50	80
Power Supply	230V 50Hz	230V 50Hz	230V 50Hz	230V 50Hz	230V 50Hz	230V 50Hz
Dry Weight [kg]	3	7	10	15	20	20
Protection Rate [IP]	66	66	66	66	66	66
Pipe Material	Teflon	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Piping Pressure Rate	PN10	PN10	PN10	PN10	PN10	PN10
BFP Vessel Material	Teflon	Teflon	Teflon	Teflon	Teflon	Borosilicate Glass
Connection Dimension to BFP [inch/mm]	8 mm	1/4"	1/2"	1"	1 1/2"	2"
Solenoid Valves Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel

* MAT-KULING AS™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
